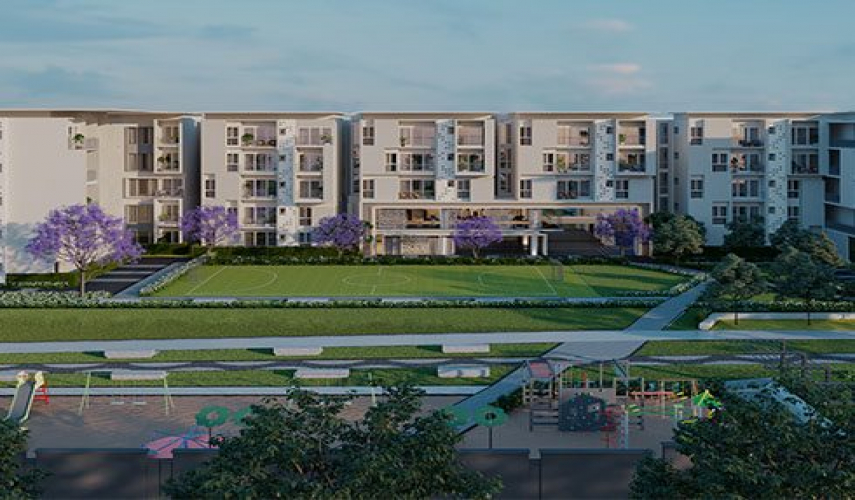

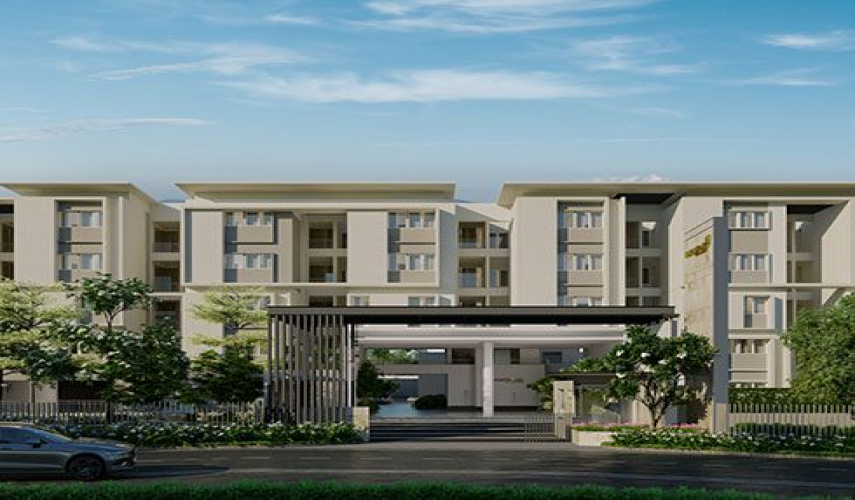

Casagrand Boulevard in Hennur Road

STRUCTURE ELITE

Structural System: RCC Framed Structure designed for seismic compliant.

Masonry: 200mm for external walls & 100mm for internal walls.

Floor- Floor height (incl. slab): Shall be maintained at 2.95m.

ATT: Anti–termite treatment will be done.

WALL & CEILING FINISH-ELITE

Internal walls: Living, Dining, bedrooms, Kitchen, Utility & lobby finished with 2 coat of putty & 1 coat of primer & 2 coats of VOC less emulsion paint. Ceiling: Finished with 2 coat of putty 1 coat of primer & 2 coats of VOC less emulsion paint. Exterior walls: Exterior faces of the building finished with 1 coat of primer & 2 coats of VOC less Emulsion paint with color as per architect design. Bathroom 1: Glazed/matte ceramic Tile of 300mm x 600mm will be finished up to false ceiling height & above false ceiling will be finished with a coat of VOC less primer. Other Bathroom: Glazed/matte ceramic Tile of 300mm x 600mm will be finished up to false ceiling height & above false ceiling will be finished with a coat of VOC less primer. Kitchen: Glazed/Matte Ceramic wall tile of size 600x 600mm for a height of 600mm above the counter top finished level. Utility: Glazed/Matte ceramic wall tile of size 600x 600mm, height to match the kitchen wall tile. Toilet ceiling: Grid type false ceiling.

FLOOR FINISH WITH SKIRITING -ELITE

Living, Dining: Vitrified tiles of size 600 x 1200 mm. Bedrooms, Kitchen & Utility: Vitrified tiles of size 600 x 1200 mm. Bathroom 1 tile: Anti-skid ceramic tiles of size 300x300mm. Other Bathroom tile: Anti-skid ceramic tiles of size 300x300mm. Balcony: Anti-skid ceramic tiles of size 300x300mm / wooden finish anti-skid tile. Private open terrace (if applicable): Floors with pressed tiles finish/grass pavers.

KITCHEN & DINING-ELITE

Electrical point: For chimney & water purifier. CP fitting: Jaguar/Roca OR equivalent. Sink: Single bowl matte finished stainless steel sink (or) carysil (Quartz) sink with drain board (OR) equivalent with pull out sink faucet. Drain: Pest free Square designer SS grating.

BALCONY-ELITE

Handrail: MS handrail as per architect’s design Hanger: Cloth drying provision in one balcony. Electrical point: One 5 amp point in recommended location.

BATHROOMS-ELITE

Sanitary fixture: Jaguar/Roca OR equivalent CP fittings: Jaguar/Roca OR equivalent Bedroom 1 – Bathroom: Wall mounted WC with cistern; Health faucet; single lever concealed diverter with Rain Shower & arm, Counter top wash basin with granite or quartz platform, glass shower partition (fixed). Other Bathrooms: Wall mounted WC with cistern; Health faucet; single lever concealed diverter with overhead shower & arm, Wall mounted wash basin Drain: Pest free Square designer SS grating and long trench grating (Master toilet) in bathing area.

JOINERY-ELITE

Wide & fancy door of size 3’6” X 7’0” of good quality African teak wood frame with double side veneer finish and extended with an additional panel on one side. Ironmongery like door lock of Digital lock system of Yale/Dorma OR equivalent, tower bolts, door viewer, safety latch, magnetic catcher.

Good quality door frame with skin shutters of double panel for a height (7’0” ht.) 2100mm Ironmongery like door lock of Godrej OR equivalent locks, thumb turn with key, door stopper, door bush, tower bolt etc. Bathroom doors: Good quality door frame with FRP molded shutters of height (7’0” ht.) 2100mm with water proofing resistant on inner side.

WINDOWS-ELITE

Windows: UPVC windows with sliding/open-able shutter with see through plain glass. French doors: UPVC frame and doors with toughened glass without grills. Ventilators: UPVC frame of fixed OR adjustable louvered OR open able shutter for ODU access

ELECTRICAL POINTS-ELITE

Power Supply: 3 PHASE power supply connection. Safety device: MCB; ELCB (Earth leakage Circuit breaker) Switches & sockets: Modular box & modular switches & sockets of Anchor Roma / Schneider / equivalent Wires: Fire Retardant Low Smoke (FRLS) copper wire of a quality IS brand Finolex / Polycab / Anchor Roma or equivalent TV/ Telephone: Point in Living & Bedroom-1 Data: Point in Living room Split- air conditioner: Point will be provided in Living & all bedrooms. Exhaust fan: Point will be given in all bathrooms Geyser: Geyser point will be provided in all bathrooms. Back-up: 750W for 4BHK, 600 W for 3 BHK, 500W for 2BHK & 400W FOR 1 BHK. Charging Pod: Mobile charging pod in Bedroom-1. Occupancy Sensor: Occupancy sensor will be provided in Foyer (if any) and all toilets. Air Purifier: Air purifier will be provided in the bedroom- 1 (PHILIPS OR equivalent) Bluetooth Speaker: Blue tooth speaker will be provided in the kitchen.

STRUCTURE-SIGNATURE

Structural System: RCC Framed Structure designed for seismic compliant (Zone 3) Masonry: 200mm for external walls & 100mm for internal walls Floor- Floor height (incl. slab): Shall be maintained at 2.95m ATT: Anti–termite treatment will be done

WALL & CEILING FINISH-SIGNATURE

Internal walls: Living, Dining, bedrooms, Kitchen, Utility & lobby finished with 2 coat of putty & 1 coat of primer & 2 coats of Emulsion (VOC less) Ceiling: Finished with 2 coat of putty 1 coat of primer & 2 coats of Emulsion (VOC less) Exterior walls: Exterior faces of the building finished with 1 coat of primer & 2 coats of Emulsion paint with color as per architect design (VOC less) Bathroom 1 & 2: Glazed/matte ceramic Tile of 400mm x 800mm will be finished up to false ceiling height & above false ceiling will be finished with a coat of VOC less primer. Bathroom 3 & 4: Glazed/matte ceramic Tile of 300mm x 600mm will be finished up to false ceiling height & above false ceiling will be finished with a coat of VOC less primer Kitchen: Glazed/Matte Ceramic wall tile of size 600x 1200mm for a height of 600mm above 800mm from finished floor level. Utility: Glazed/Matte ceramic wall tile of size 600x 1200mm, height to match the kitchen wall tile. Toilet ceiling: Grid type false ceiling

WALL & CEILING FINISH-SIGNATURE

Foyer, Living, Dining: Vitrified tiles of size 600x1200mm Bedrooms & Kitchen & Utility: Vitrified tiles of size 600x1200mm Bathroom 1 & 2: Anti-skid ceramic tiles of size 400x400mm Bathroom 3 & 4: Anti –skid ceramic tiles of size 300×300 mm Balcony: Anti-skid ceramic tiles of size 300x300mm/ wooden tiles Private open terrace (if applicable): Floors with pressed tiles finish/grass pavers.

KITCHEN & DINING

Electrical point: For chimney & water purifier CP fitting: Kohler / American Standard OR equivalent Sink: Single bowl matte finished stainless steel sink (or) carysil (Quartz) sink with drain board (OR) equivalent with pull out sink faucet. Drain: Pest free Square designer SS grating. Dining: Counter wash basin with polished granite/engineered marble or equivalent wherever applicable.

BALCONY-SIGNATURE

Handrail: MS handrail as per architect’s design Hanger: Cloth drying provision in one balcony Electrical point: One 5 amp point in recommended location.

BATHROOMS-SIGNATURE

Sanitary fixture: Kohler/American standard OR equivalent CP fittings: Kohler/American standard OR equivalent Master bathroom: Wall mounted WC with cistern; Health faucet; single lever concealed diverter with Rain Shower, hand shower/ bath tub; Counter top wash basin with engineered marble/ granite or quartz platform, glass shower partition. Other Bathrooms: Wall mounted WC with cistern; Health faucet; single lever concealed diverter with overhead shower & arm, wash basin with polished granite/ engineered marble or quart platform, Glass shower partition. Drain: Pest free Square designer SS grating.

JOINERY

Wide & fancy door of size 3’6” X 7’0” of good quality African teak wood frame with double side veneer finish and extended with an additional panel on one side. Ironmongery like door lock of Digital lock system of Hafele/YALE/DORMA OR equivalent, tower bolts, door viewer, safety latch, Magnetic catcher, door closure in SS finish Bedroom doors: Good quality door frame with laminated shutter of height (7’0” ht.) 2100mm Ironmongery like door lock of Godrej OR equivalent locks, th

Good quality door frame with design moulded skin door with water proofing on inner side of height (7’0” ht.) 2100mm. Ironmongery like thumb turn lock of Godrej OR equivalent and a latch.

WINDOWS-SIGNATURE

Windows: UPVC windows with sliding/open-able shutter with see through plain glass without grills. French doors: UPVC frame and doors with toughened glass without grills. Ventilators: UPVC frame of fixed OR adjustable louvered OR open able shutter for ODU access.

ELECTRICAL POINTS-SIGNATURE

Power Supply: 3 PHASE power supply connection. Safety device: MCB; ELCB (Earth leakage Circuit breaker) Switches & sockets: Modular box & modular switches & sockets of Anchor Roma / Schneider / equivalent Wires: Fire Retardant Low Smoke (FRLS) copper wire of a quality IS brand Finolex / Polycab / equivalent TV/ Telephone: Point in Living & Bedroom 1 Data: Point in Living room Split- air conditioner: Point will be provided in all bedrooms & living and dining. Exhaust fan: Point will be given in all bathrooms Geyser: Geyser point will be provided in all bathrooms Back-up: 750W for 4BHK, 600 W for 3 BHK Charging Pod: Mobile charging pod in Bedroom 1 & living area Occupancy Sensor: Occupancy sensor will be provided in Foyer and toilets. Air Purifier: Air purifier will be provided in the bedroom- 1 (PHILIPS OR equivalent) Bluetooth Speaker: Blue tooth speaker will be provided in the kitchen and Bedroom 1 bathroom.

COMMON FEATURES

Lift: Elevators of 13 passenger automatic lift will be provided with interior finish in every core Back – up 100 % Power backup for common amenities such as lifts, Water pump, STP & selective common area lighting Name board: Apartment owner name will be provided in ground floor. Lift facia: Granite cladding / Wall finishes / wall tiles as lift facia in all floors Lobby & Corridor: Ground & first floor lobby with granite/equivalent & typical floors with tile flooring Staircase floor: Ground floor with granite flooring or equivalent & typical floors with tile/Kota stone flooring Staircase handrail: MS handrail with enamel paint in all floors Ground level Flooring: Grano or equivalent flooring. Terrace floor: Floors with pressed tiles finish Notice board: Digital Notice board in Ground level entrance lobby of every core. GYM & Indoor play area: Oxygen infused gym and indoor play area.

COMMON OUTDOOR FEATURES

Water storage: UG sump with OHT along with WTP (min. requirement as per water test report) Rain water harvest: Rain water harvesting site STP: Centralized Sewage Treatment plant Intercom: Intercom will be provided Safety: CCTV surveillance cameras will be provided all round the building at pivotal locations in ground level. Well defined driveway: Interlocking paver block/equivalent flooring with demarcated driveway as per landscape design intent. Security: Security booth will be provided at the entrance with My Gate App Compound wall: Building perimeter fenced by compound wall with entry gates for a height as per Architect/landscape design. Landscape: Suitable landscape at appropriate places in the project Driveway: Convex mirror & driveway lighting for safe turning in driveway Facade: Façade & compound wall lighting in project as per architects design Swimming pool: Chlorine free swimming pool. Electric car charging cum car wash bays are provided. Mosquito Magnet: Mosquito magnet will be provided in open landscape spaces.
