Casagrand Amor in Begur

1. STRUCTURE

Structural System :RCC Framed Structure designed for seismic compliant (Zone 2)

Masonry : 200 mm for external walls & 100 mm for internal walls

Floor- Floor height (incl. slab) : Will be maintained at 2,950 mm

2.WALL/CEILING FINISH

Internal walls : Finished with 2 coat of putty, 1 coat of primer & 2 coats of premium emulsion

Ceiling : Finished with 2 coat of putty, 1 coat of primer & 2 coats of premium emulsion

Exterior walls : Finished with 1 coat of primer & 2 coats of emulsion paint with color as per architect’s design

Bathroom : Ceramic tile of size 300 x 600 mm for a height of 2,250 mm & above false ceiling will be finished with a coat of primer

Kitchen : Engineered marble/Equivalent for a height of 600 mm above the counter top finished level

Toilet ceiling : Grid type false ceiling

3.FLOOR FINISH WITH SKIRTING

Foyer : Granite flooring

Living, Dining & Utility (if applicable) : Italian marble flooring

Bedroom & Kitchen : Vitrified tiles of size 1,200 mm x 600 mm

Bathroom : Anti-skid ceramic tiles of size 300 x 300 mm

Balcony : Anti-skid ceramic tiles of size 600 x 600 mm

Private open terrace (if applicable) : Pressed tiles finish

4. KITCHEN & DINING

Kitchen : Platform will be finished with Engineered marble/Equivalent slab of 600 mm wide for a height of 850 mm from the finished floor level

Electrical point : For chimney, hob & water purifier

CP fittings : American Standard/Kohler or Equivalent

Sink : Single bowl SS sink without drain board with pull out faucet for 1BHK

Single bowl SS sink with drain board with pull out faucet for 2BHK & 3BHK

Dining : Counter top washbasin for 2BHK & 3BHK

5.BALCONY

Handrail : MS handrail as per architect’s design

Cloth drying hanger : Will be provided in balcony

6.BATHROOMS

CP fittings & sanitary fixtures : American Standard / Kohler or Equivalent

Bathroom 1 : Wall mounted WC with cistern, Health faucet, Single lever diverter, Shower panel with rain shower and hand shower, Granite counter wash basin, Glass partition with door and 2’ trench drain in shower area.

Other Bathrooms : Wall mounted WC with cistern, Health faucet, Single lever diverter, Rain shower, Granite counter wash basin, glass partition and pest free drain.

7. JOINERY

Main door : Wide and fancy main door of size 1,050 x 2,100mm of veneer finish with decorative side panel.

: Ironmongeries like digital door lock of Yale/Equivalent brand, tower bolts, door viewer, magnetic door catcher, etc.,

Bedroom doors : Good quality door frame with double side laminated shutter of size 900 x 2,100 mm.

: Ironmongeries like Dorma or Equivalent lock, magnetic door catcher, tower bolt etc.,

Bathroom doors : Good quality door frame with double side laminated shutter of size 750 x 2,100 mm.

: Ironmongeries like thumb turn lock of Dorma/Equivalent without key, door bush, etc.,

Windows : Aluminium windows with sliding shutter with see through plain glass and MS railing (wherever applicable)

French doors : Aluminium doors with sliding shutters and toughened glass

Ventilators : Aluminium ventilators of fixed / open-able shutter for ODU access (wherever applicable)

8.ELECTRICAL POINTS

Power Supply : Single phase power supply connection for 1BHK & 2BHK three phase power supply connection for 3BHK

Safety device : MCB (Miniature Circuit Breaker) & RCCB (Residual Current Circuit Breaker) Switches & sockets : Modular box, modular switches & sockets of good quality IS brand

Wires : FRLS (Flame Retardant Low Smoke) copper wire of good quality IS brand

TV : Point in Living and one of the bedrooms

: Provision in other bedrooms

Data & USB : Point in living & one of the bedrooms

Split- air conditioner : Point in living and all bedrooms

Foot Lamp : Point in all bedrooms

Exhaust fan : Point in all bathrooms

Geyser : Point in all bathrooms

Back-up : 350 W for 1BHK, 400 W for 2BHK & 500 W for 3BHK

COMMON FEATURES

Lift : Automatic lift will be provided with MS finish

Back – up : 100% Power backup for common amenities such as clubhouse, Lifts, STP,WTP & common area lighting

Owner’s directory : Apartment owner’s name will be provided in ground floor

Lift fascia : Granite cladding at all the floors for threshold of 300 mm

Lift Lobby : Granite flooring @ ground level & Tile flooring @ other level

Corridor : Tile flooring

Staircase floor : Granite flooring

Staircase handrail : MS handrail with enamel paint finish

Terrace floor : Pressed tile flooring

Terrace doors : Good quality FRP door of size 900 x 2,100 mm with paint finish

: Ironmongeries like thumb turn lock of Dorma/Equivalent without key, door bush, automatic door closer, etc.

OUTDOOR FEATURES

Water storage : Centralized UG sump with WTP (Min. requirement as per water test report)

Rain water harvest : Rain water harvesting system as per site requirement

STP : Centralized Sewage Treatment plant

Safety : CCTV surveillance cameras will be provided all around the building at pivotal locations in ground level

Well defined walkway : Walkway spaces well defined as per landscape’s design intent

Security : Security booth will be provided at the entry / exit

Compound wall : Site perimeter fenced by compound wall with entry gates for a height of 1,500 mm as per design intent and over that 600 mm with barbed fence

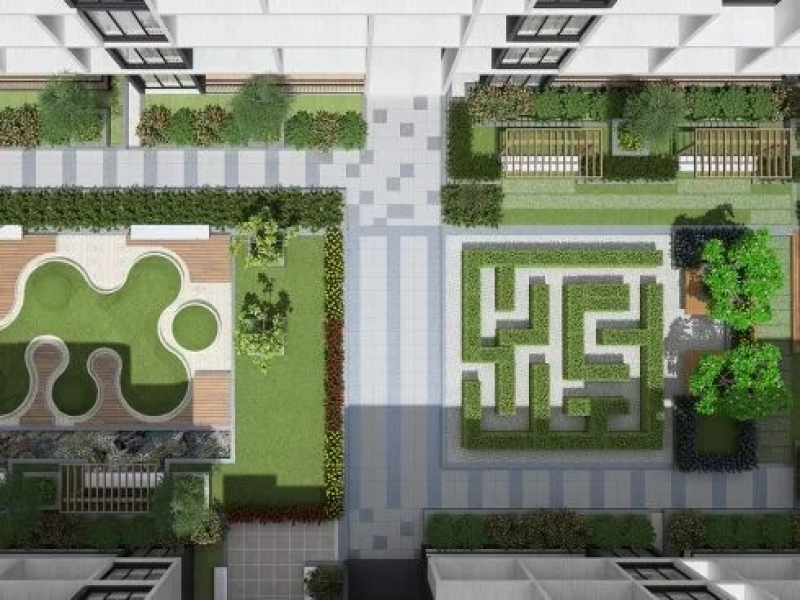

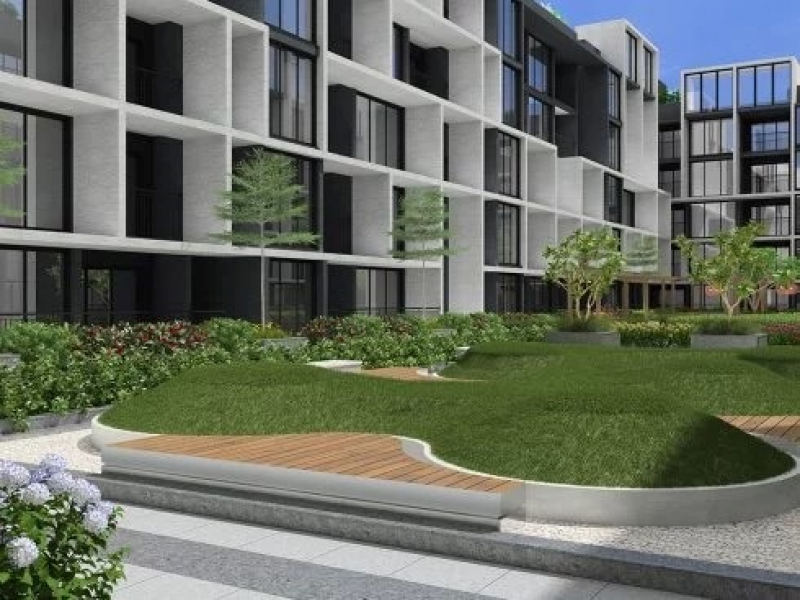

Landscape : Suitable landscape at appropriate places in the project as per design intent

Driveway : Convex mirror for safe turning in driveway in / out

External driveway : Interlocking paver block/equivalent flooring with demarcated driveway as per landscape’s design intent
